Vehicle Information

VIN: 1B7HG2AN21S249135
Stock #: 1S249135
Model Code: AN5L84
  • Body Style TRUCK
  • Mileage 183,379
  • Fuel Economy
    City/Highway 15/19 MPG
  • Engine Gas V8 4.7L/287
  • Fuel Type Gas

Highlighted Features

This online window sticker is provided for informational purposes only. Vehicle features, options, pricing and other information are subject to change. See your Hyundai dealer and the Monroney label affixed to the actual vehicle for the most up-to-date specifications and information.
  • 4WD/AWD

Dealer Comments

Next Generation Magnum 4.7L V8, 4WD. 2001 Dodge Dakota 4WD Next Generation Magnum 4.7L V8 Recent Arrival!S

All Features

  • NV231HD 2-speed synchronized transfer case w/shift-on-the-fly
  • Four wheel drive
  • 600-amp maintenance-free battery
  • 117-amp alternator
  • High strength 30,000 PSI carbon steel frame
  • 5.3' pickup box-inc: double wall construction, 2-tier loading
  • 1450# payload pkg-inc: 6050# GVWR (3600 front/3850 rear), springs (3600 front/3850 rear), axles (3600 front/3850 rear)
  • Independent front suspension
  • HD front/rear shock absorbers
  • Front stabilizer bar
  • P235/75R15 all-season SBR OWL tires
  • Conventional spare tire & wheel w/winch-type carrier
  • (4) 15" x 7" 5-spoke aluminum wheels
  • Pwr rack & pinion steering
  • Pwr front disc/HD rear drum brakes-inc: rear anti-lock
  • 24 gallon fuel tank
  • Painted front bumper
  • Argent rear bumper
  • Painted body-color grille
  • Black 5" x 7" exterior mirrors
  • Tinted glass
  • Sunscreen glass on rear windows
  • Variable intermittent windshield wipers
  • Front/rear body-color fascias
  • "Sport" door graphics
  • Cloth 40/20/40 split bench seat w/center armrest
  • Cloth 60/40 split folding rear bench seat
  • Floor carpeting
  • Analog instrument cluster w/tachometer
  • 120 MPH primary speedometer
  • Electronic AM/FM stereo radio w/cassette, (4) speakers
  • Cigar lighter
  • Cloth door trim panels w/map pocket
  • Dual cloth covered sun visors w/RH mirror
  • Driver/passenger assist handles
  • Light group-inc: ash tray/glove box light, courtesy light under
  • Light group-inc: ash tray/glove box light, courtesy light under instrument panel, mini overhead console, aux 12V pwr outlet, underhood light, exterior cargo lamp
  • Driver & front passenger airbags w/passenger on/off switch
  • Rear anti-lock brakes
  • 3-point outboard seating position seatbelts w/front height adjusters, center lap belts
  • Dual note electric horn
  • Mileage
    • EPA Fuel Economy Est - City (MPG): 15
    • EPA Fuel Economy Est - Hwy (MPG): 19
  • Electrical
    • Cold Cranking Amps @ 0° F (Primary): 600
    • Maximum Alternator Capacity (amps): 117
    • Maximum Alternator Watts: 1404
  • Cooling System
    • Total Cooling System Capacity (qts): 14.0
  • Weight Information
    • Gross Axle Wt Rating - Front (lbs): 3600
    • Gross Axle Wt Rating - Rear (lbs): 3850
    • Curb Weight - Front (lbs): 2283
    • Curb Weight - Rear (lbs): 1868
    • Gross Vehicle Weight Rating Cap (lbs): 6000
    • Gross Combined Wt Rating (lbs): 8400
  • Trailering
    • Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
    • Dead Weight Hitch - Max Tongue Wt. (lbs): 200
    • Wt Distributing Hitch - Max Trailer Wt. (lbs): 6100
    • Wt Distributing Hitch - Max Tongue Wt. (lbs): 610
  • Suspension
    • Suspension Type - Front: Torsion Bar
    • Suspension Type - Rear: Leaf
    • Spring Capacity - Front (lbs): 3600
    • Spring Capacity - Rear (lbs): 3850
    • Axle Type - Front: Independent
    • Axle Type - Rear: Semi-Floating Hypoid
    • Axle Capacity - Front (lbs): 3600
    • Axle Capacity - Rear (lbs): 3850
    • Axle Ratio (:1) - Front: 3.55
    • Axle Ratio (:1) - Rear: 3.55
    • Shock Absorber Diameter - Front (mm): 30.2
    • Shock Absorber Diameter - Rear (mm): 30.2
    • Stabilizer Bar Diameter - Front (in): - TBD -
  • Brakes
    • Brake Type: Pwr
    • Brake ABS System: Rear Wheel
    • Disc - Front (Yes or ): Yes
    • Front Brake Rotor Diam x Thickness (in): 11.3 x 0.9
    • Drum - Rear (Yes or ): Yes
    • Rear Drum Diam x Width (in): 9 x 2.5
  • Tires
    • Front Tire Order Code: TS2
    • Rear Tire Order Code: TS2
    • Spare Tire Order Code: TS2
    • Front Tire Size: P235/75R15
    • Rear Tire Size: P235/75R15
    • Spare Tire Size: P235/75R15
    • Front Tire Capacity (lbs): 1985
    • Rear Tire Capacity (lbs): 1985
    • Spare Tire Capacity (lbs): 1985
    • Revolutions/Mile @ 45 mph - Front: 724
    • Revolutions/Mile @ 45 mph - Rear: 724
    • Revolutions/Mile @ 45 mph - Spare: 724
  • Wheels
    • Front Wheel Size (in): 15 x 7.0
    • Rear Wheel Size (in): 15 x 7.0
    • Spare Wheel Size (in): 15 x 7.0
    • Front Wheel Material: Aluminum
    • Rear Wheel Material: Aluminum
    • Spare Wheel Material: Steel
  • Steering
    • Steering Type: Pwr Rack & Pinion
    • Steering Ratio (:1), On Center: 14.8
    • Turning Diameter - Curb to Curb (ft): - TBD -
    • Turning Diameter - Wall to Wall (ft): - TBD -
  • Frame
    • Frame Type: Ladder
  • Fuel Tank
    • Fuel Tank Capacity, Approx (gal): 24
    • Fuel Tank Location: Inboard LH
  • Exterior Dimensions
    • Wheelbase (in): 131
    • Length, Overall w/o rear bumper (in): 215.1
    • Width, Max w/o mirrors (in): 71.6
    • Height, Overall (in): 68.8
    • Overhang, Front (in): 37.8
    • Overhang, Rear w/o bumper (in): 49.6
    • Front Bumper to Back of Cab (in): 139.7
    • Cab to Axle (in): 38.0
    • Cab to End of Frame (in): - TBD -
    • Ground to Top of Load Floor (in): 30.5
    • Ground to Top of Frame (in): - TBD -
    • Frame Width, Rear (in): - TBD -
    • Ground Clearance, Front (in): 7.7
    • Ground Clearance, Rear (in): 9.0
  • Cargo Area Dimensions
    • Cargo Box Length @ Floor (in): 63
    • Cargo Box Width @ Top, Rear (in): 57.8
    • Cargo Box Width @ Floor (in): 59.3
    • Cargo Box Width @ Wheelhousings (in): 45.1
    • Cargo Box (Area) Height (in): 17.5
    • Tailgate Width (in): 53.3
    • Cargo Volume (ft³): 38.1
    • Ext'd Cab Cargo Volume (ft³): 45.8
  • Interior Dimensions
    • Passenger Capacity: 6
    • Front Head Room (in): 40.0
    • Front Leg Room (in): 41.9
    • Front Shoulder Room (in): 58.1
    • Front Hip Room (in): 56.7
    • Second Head Room (in): 39.3
    • Second Leg Room (in): 36.0
    • Second Shoulder Room (in): 57.4
    • Second Hip Room (in): 53.1
  • Summary
    • Vehicle Name: Dodge Dakota
    • Body Style: Quad Cab 5'3" Bed
    • Body Code: 131.1" WB
Vehicles You Might Like

2012 Chevrolet Silverado 1500 LT

VIN: 3GCPKSE78CG164090
Stock: CG164090
Model: CK10543
  • Call For Price MSRP


2012 Ford F-150 4WD SuperCab 6-1/2 Ft Box STX

VIN: 1FTFX1EF4CFC91757
Stock: CFC91757
Model: X1E
  • Call For Price MSRP


2013 Chevrolet Silverado 1500 Extended Cab Standard Box 4-Wheel Drive LT

VIN: 1GCRKSEA4DZ220838
Stock: DZ220838
Model: CK10753
  • Call For Price MSRP


2014 Chevrolet Silverado 1500 LT

VIN: 1GCNKREC3EZ402623
Stock: EZ402623
Model: CK15903
  • Call For Price MSRP

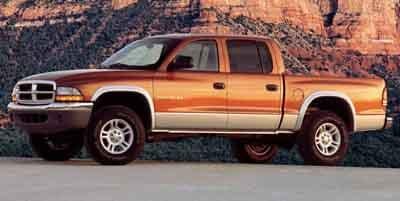

May not represent actual vehicle. (Options, colors, trim and body style may vary)
